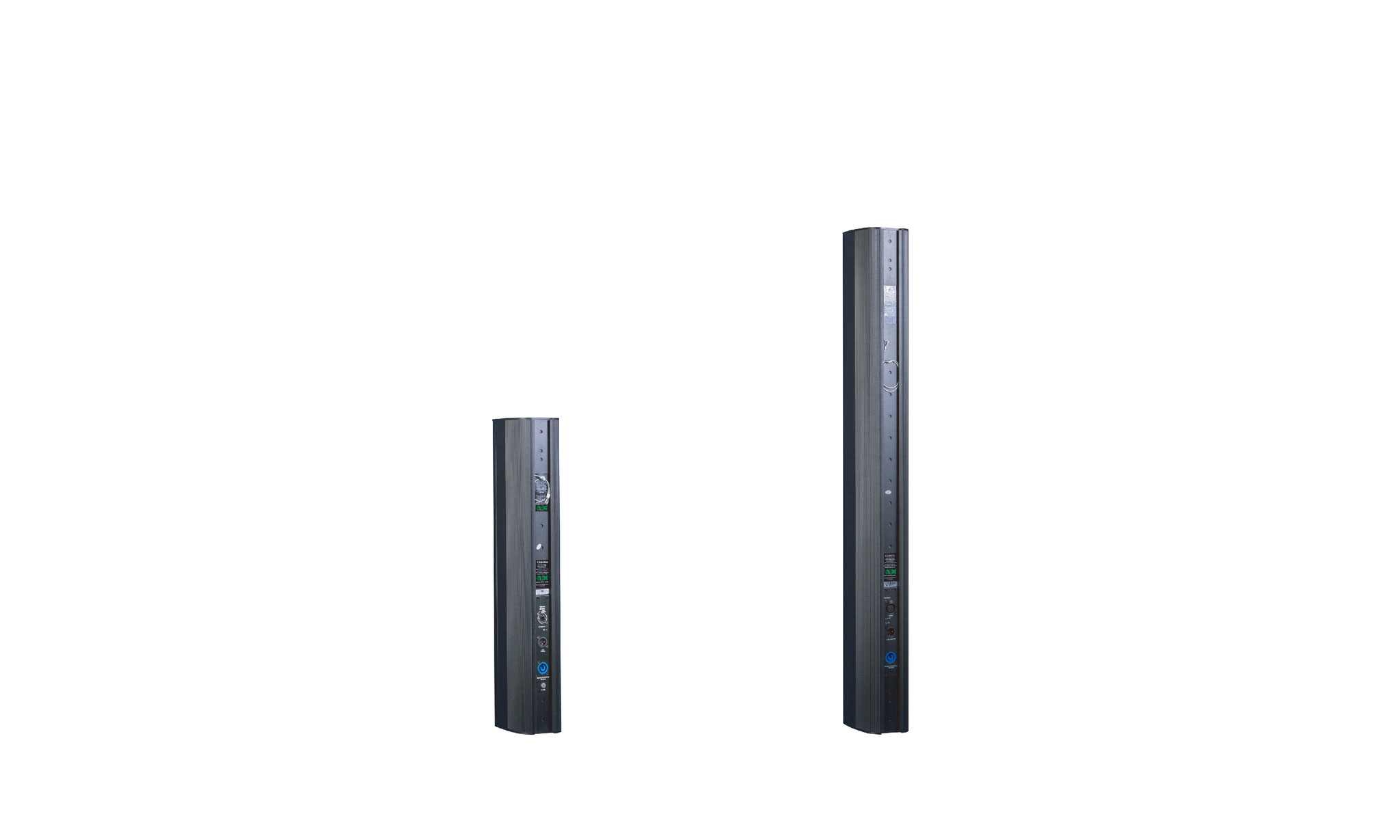

CS3 Serie

CS342A

  • Components: 4x3" bass 3" treble
  • Freq.Resp. : 110Hz-20KHz
  • Max SPL: 114dB
  • Cover: 90 x 40
  • Power Amp: 250W
  • Power: 90V-240V AC
  • Input: CSA: XLR x 1 / powerCON x 1
  • CSAN: etherCON x 1 / powerCON x 1
  • Color: Black/White
  • Accessories: Wall / Hanger
  • W x D x H(mm): 124 x 148 x 660
  • Net Weight:
    • CS342A: 6.8kg
    • CS3122AN: 14.8kg

CS382A

  • Components: 8x3" bass 4" treble
  • Freq.Resp. : 110Hz-20KHz
  • Max SPL: 119dB
  • Cover: 90 x 40
  • Power Amp: 500W
  • Power: 90V-240V AC
  • Input: CSA: XLR x 1 / powerCON x 1
  • CSAN: etherCON x 1 / powerCON x 1
  • Color: Black/White
  • Accessories: Wall / Hanger
  • W x D x H(mm): 124 x 148 x 1072
  • Net Weight:
    • CS382A: 11.6kg
    • CS382AN: 11.8kg

CS3122A

  • Components: 12x3" bass 3" treble
  • Freq.Resp. : 110Hz-20KHz
  • Max SPL: 122dB
  • Cover: 90 x 40
  • Power Amp: 500W
  • Power: 90V-240V AC
  • Input: CSA: XLR x 1 / powerCON x 1
  • CSAN: etherCON x 1 / powerCON x 1
  • Color: Black/White
  • Accessories: Wall / Hanger
  • W x D x H(mm): 124 x 148 x 1382
  • Net Weight:
    • CS3122A: 14.6kg
    • CS3122AN: 14.8kg
